Eccentric Turning 101 – Everything You Need to Know

For the best accuracy, complex non-centered shapes are turned, so eccentric form turning is the main process. If you want to produce parts with shapes and offsets not possible through regular turning, you need to understand eccentric turning in lathe. In this article, you will discover various types of eccentric turning and the tools needed for the process. This article will teach you how to prepare your lathe, pick the right tools, and solve issues that may occur. You will find out how to use eccentric turning to enhance both the accuracy and speed of your machining.

Table of Contents

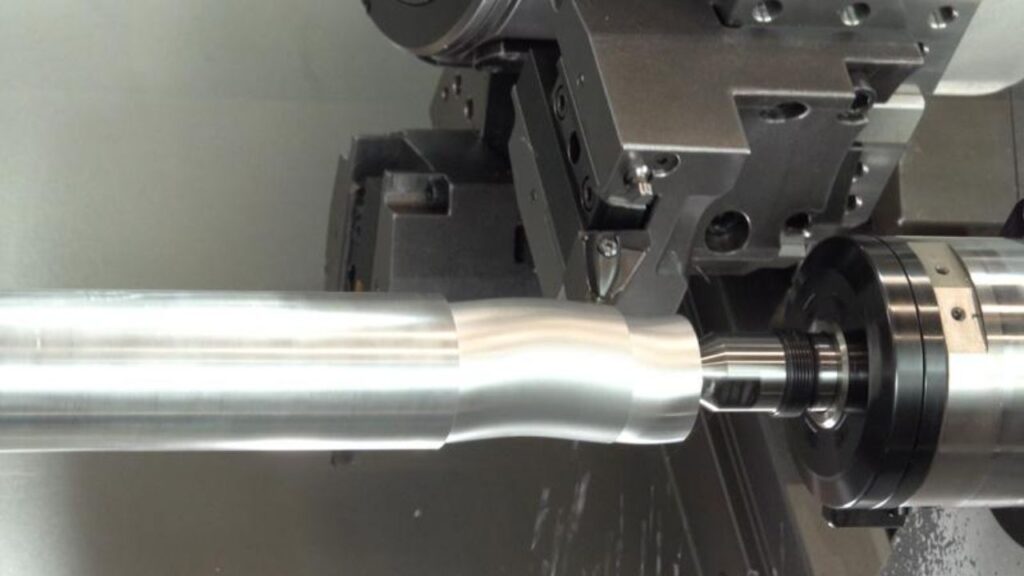

Definition of Eccentric Turning

Eccentric turning requires placing the axis outside of the center so that the workpiece has an offset shape. As a result, you are able to make parts that are not centered, giving them more value and making them more complex. The principle of eccentricity is that there is a gap between the spindle and the center of the workpiece when using a tool. Eccentric turning cnc allows you to make shapes that regular turning does not. Learning the difference will improve your work and help you create unique parts with exact offsets.

Basic Principles of Eccentric Turning

The workpiece is held off-center from the lathe, allowing the tool to cut it into an off-center shape during eccentric turning. 4-jaw chucks, adjustable faceplates, and CNC lathes with live tooling help you match the position of the cutter to the workpiece’s alignment. Since the workpiece is not spinning at the center of the lathe, it is easy to make special off-center features precisely. Centering in lathe ensures accuracy in each cut.

Types of Eccentric Turning

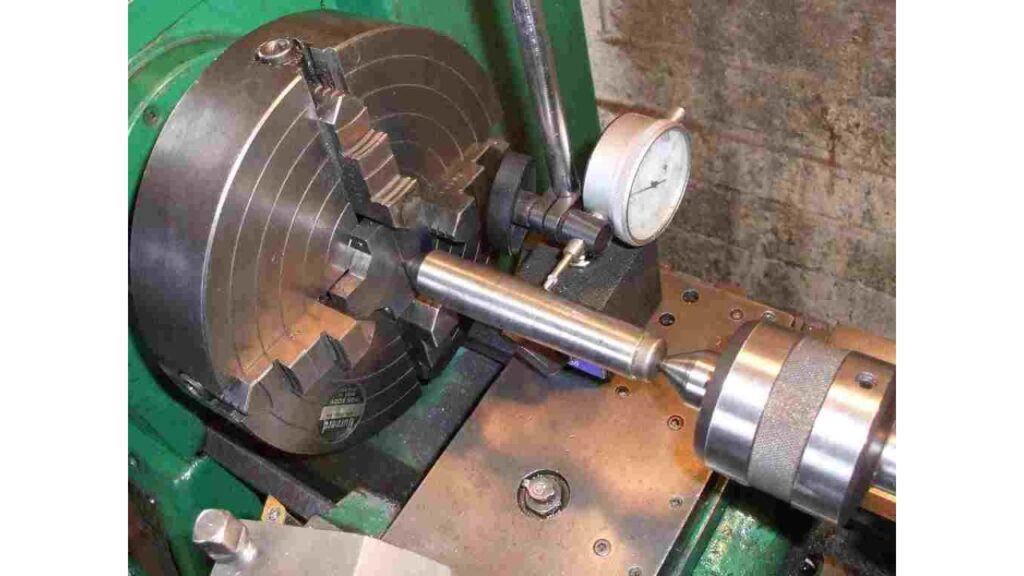

Single-Offset Turning

In single-offset turning, you turn a part around a single eccentric axis. Working on the piece off the center lets you make a part with one eccentric feature. It is best to use this method when you want a simple, precise shape that isn’t centered on the shaft. It is most commonly used when you require just one eccentric point on a shaft or cam.

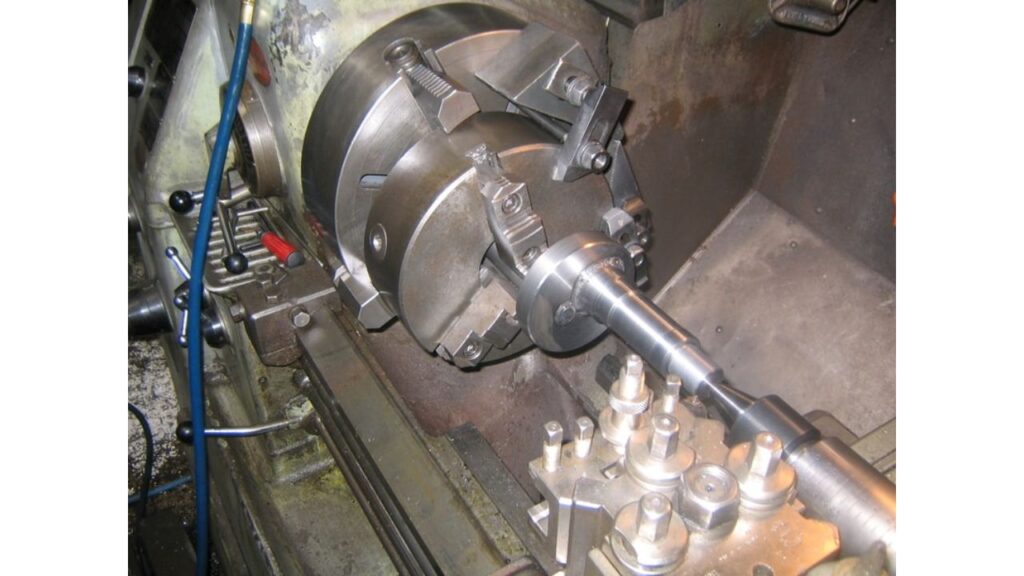

Multi-Offset Turning

Multi-offset turning makes parts with different offset axes, and each axis can be a different size. Parts are produced with more than one offset axis, each possibly a different size. When your design has eccentric features in more than one area, this is the best approach. Even though it is a complex process, it helps you do more with what you can make. Offset machining is critical here to achieve precision.

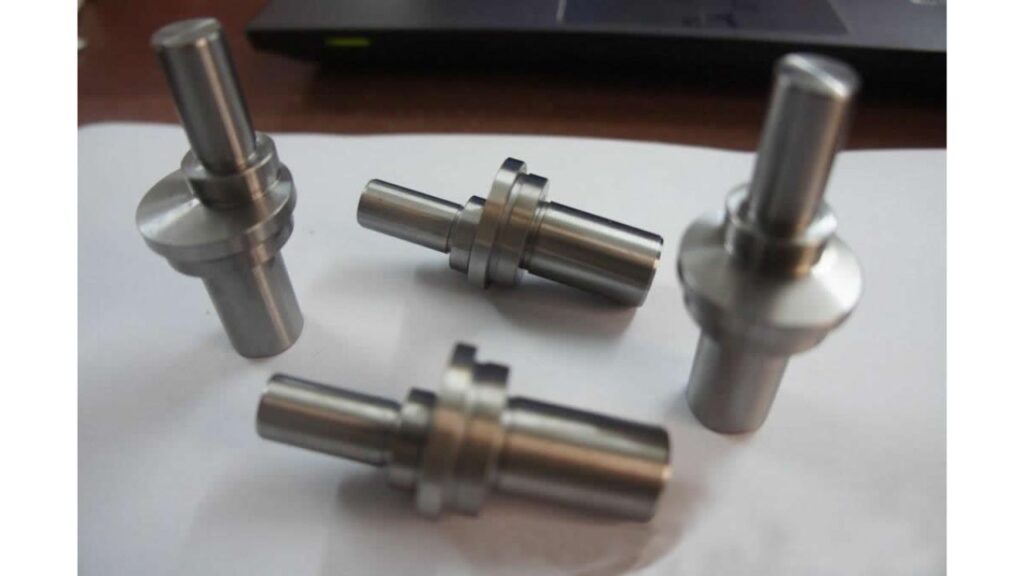

Step Eccentric Turning

If you use step eccentric turning, you create parts with many different diameters and offsets placed along the shaft. In step eccentric turning, the part’s diameter and offset change gradually because of the eccentric stepped design. This method is necessary for making mechanical parts that must sometimes be both concentric and eccentric. Long lathe turning often requires step eccentric methods.

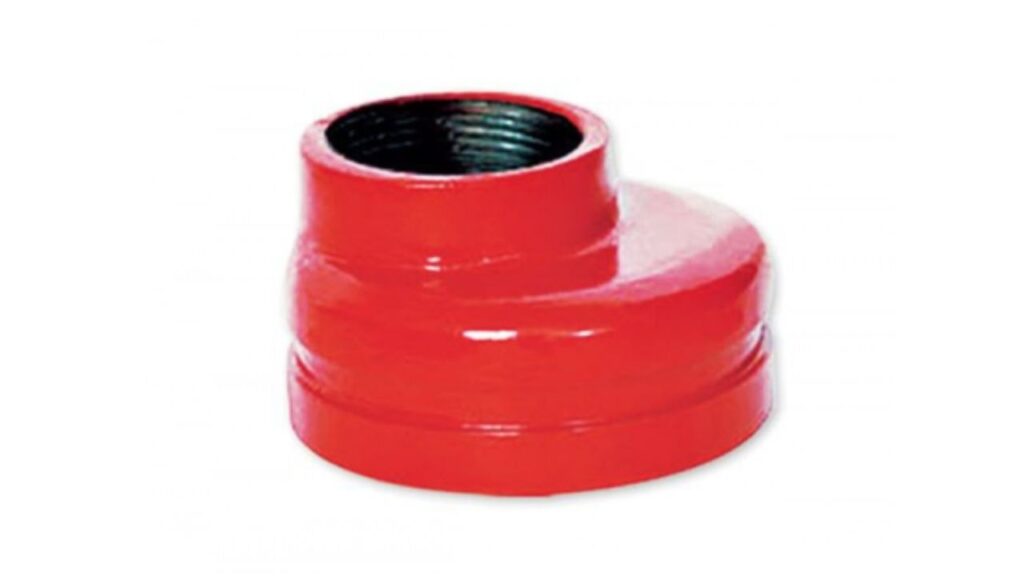

Eccentric Threading

Eccentric threading means threads are removed from spots that are not actually in the center of the part. You can produce threaded parts in a way that their thread centre is not on the centreline. It allows you to create threaded parts that function well when they are not centered.

Eccentric Grooves and Bores

An eccentric groove or bore is a groove or hole that is not exactly centered within or on the outer surface of a part. Grooves or holes can be made in the workpiece so that they are not aligned with the center. You can use this method to create cams, bearing surfaces, or locking hardware that are off-center.

Feature	Single-Offset Turning	Multi-Offset Turning	Step Eccentric Turning	Eccentric Threading	Eccentric Grooves and Bores
Offset Axis	One	More than one (potentially with varying diameters)	Multiple offsets and varying diameters along the workpiece length	Thread center is offset from the axis of rotation	Groove or bore is offset from the centerline of the workpiece
Process	Workpiece moved from the central axis to create one off-center feature.	Assembly of parts with multiple eccentric sections.	Creation of stepped profiles with eccentric characteristics.	Cutting threads on an offset axis.	Machining internal or external offset features (grooves or holes).
Key Characteristic	Basic, accurate single offset.	Multiple offset features at various locations. Enhanced versatility.	Gradual variation in diameter and offset along the length. Combination of concentric and eccentric elements.	Non-concentric thread fit or adjustment.	Non-co-aligned internal or external features.
Typical Applications	Shafts, simple cams.	Parts requiring several offset features (e.g., complex mechanical linkages).	Mechanical components needing both concentric and eccentric portions.	Specialized threaded components requiring non-concentric fit or adjustment mechanisms.	Cam profiles, bearing seats, locking mechanisms utilizing eccentric positioning.
Complexity	Relatively simple.	More complex due to multiple offsets.	More complex due to varying diameters and offsets.	Specialized setup and machining required.	Requires precise setup to achieve accurate offset features.
Accuracy Focus	Achieving one accurate off-center shape.	Ensuring the accurate positioning and dimensions of multiple offset features.	Maintaining accuracy across varying diameters and offsets along the length.	Ensuring accurate thread dimensions and the desired offset.	Achieving precise dimensions and location of the offset grooves or bores.
Versatility	Limited to single offset features.	High versatility in creating complex geometries with multiple offsets.	High versatility in producing parts with both concentric and eccentric elements with gradual transitions.	Enables the creation of specialized threaded components not achievable with standard threading.	Offers flexibility in designing functional features like cam profiles and specialized fittings.

Equipment and Setup for Eccentric Turning

Manual Lathe Setup

For rotary action by hand, use a 4-jaw independent chuck. The workpiece can be rotated on its edge or midplane. Use dial indicators to find the centering in lathe precisely. Faceplates with adjustable clamps are preferred for irregular shapes.

CNC Lathe Setup

G-code tells the tool where to move in CNC eccentric turning cnc. Usually, rotating and offsetting workpieces for machining is accomplished with special spindles and rotary axes. Using live tooling you can drill or mill your workpiece as it rotates off-center, saving time and making it more accurate.

Special Fixtures and Jigs

Sometimes you need to repeat some jobs, and special devices called eccentric collets and mandrels can simplify the process. They secure your pieces to the exact offset that is right for your work. The use of custom fixtures and V-blocks holds your parts firmly, so you can turn them evenly and achieve the same results moment to moment on your machine.

Programming Eccentric Turning in CNC

When doing eccentric turning on a CNC lathe, you should figure out the best way to move your tool. Once you start eccentric turning, use the X-axis to change the offset and thus the size of your part. If your part is longer, you will use the Z-axis to change it. Eccentric turning in lathe ensures off-center parts remain precise.

G-code Considerations

Since eccentric turning is not common, you won’t usually find a G-code for it. Do not use traditional commands, as eccentric turning is not done around the center of the part. Make sure to avoid usual commands, because eccentric turning is not in the center of the part. The toolpath should match the geometry of the part’s offset, rather than being in the center.

Using CAM Software

It is so very easy when you depend on CAD/CAM software to do eccentric turning. Using CAD/CAM software helps you do eccentric turning easily and more precisely, including designing complex features like an elliptical cam. It is always advisable to test your design on a simulation before rotating the part. Using CAM software you can identify any issues that could occur in case of wrong eccentric turning.

Compensating for Imbalance and Vibration

Since the toolpath isn’t right in the center, it may cause trouble and vibrations. One solution is to slow down the spindle and keep the tool’s feed steady. If the spindle speed is lower and the tool feeds at a constant rate, the tool will last longer and you’ll get smoother results. The results are better and more accurate if you do this.

Machining Parameters and Best Practices

Tool Selection

Whenever the system vibrates, run the spindle slower and vary the feed. Because of the off-center weight, long lathe turning in eccentric operations can make your work piece unbalanced. The off-center weight throws the work piece off balance; a high rotational speed could make your system vibrate. Following these suggestions allows you to stop vibration and protect your tools.

Balancing Techniques

You can stop the vibration by turning down the speed or by adding extra balance to the system. With these recommendations, vibration is reduced, and your tools are protected. Balanced tools will stay in good condition and will leave your pieces with a smooth finish.

Tool Wear and Surface Finish

Vibrations from imbalance can ruin your tools and cause poor surface finish. If the machine vibrates and breaks your tools, you should replace the damaged inserts immediately. Coolant helps keep the machine from overheating, prevents your tools from warping, and gives you a smoother finish. Correct balancing of your tools helps them last and the surface will be better.

The Process of Eccentric Turning

Step 1: Measuring and Marking

You should first pick the distance you want the eccentric features to be from the center. In the first step, make a mark at the intended locations for the eccentric features. It’s very important to handle these parts carefully at this point. It is important to determine the placement of eccentric features by using calipers or Dial Indicators.

Step 2: Setting Up the Lathe

Next, set up your lathe. To do eccentric turning on a manual lathe, secure the workpiece in the chuck or face plate and move it to the marked spot. You should ensure that every part is correctly put and secured on a CNC Lathe. A wrong amount of turning application can damage your piece.

Step 3: Programming the Lathe

Because there is no standard program for eccentric turning on CNCs, you must use the computer to set the path of the tool. As there is no regular code for eccentric turning on CNCs, you should manually program the tool’s motion on the X and Z axes. With a simulation program, problems are avoided and the process becomes simple for the tool.

Step 4: Actual Turning Process

Once all the setup steps are complete, follow your instructions to turn the part. The shape of the part will depend on the path you set up for the tool in the program. Be careful when turning the part to avoid breaking it. Setting the tools into coolant will help cool them and maintain the quality and appeal of the parts you produce.

Step 5: Inspection and Quality Control

Check your turned part when you have finished the process. Check the shape and size of your part using instruments after you are done. After you finish turning, take a note of any problems you notice on the workpiece. Should there be any issues, keep adjusting your turning steps until your piece is perfect.

Key Factors Affecting Eccentric Turning

Workpiece Material

How a material behaves is mostly determined by its machinability, hardness and thermal features. The behavior of the material as it is cut depends on how machinable, hard, and thermally it is. For instance, working with aluminum requires less tool maintenance since the cuts are faster, while with steel, which is stronger, tools are worn out more slowly. For this reason, you must use the correct cutting method to get tidy and accurate cuts.

Lathe Setup and Machine Settings

Precision in eccentric turning is mostly influenced by the turning speed, feed rate and tool pressure. If the speed of the tool is correct, it won’t overheat and be damaged. When the feed rate is set correctly, you can stop the tool from being deflected. For finished results, it is necessary to set precise toolpaths and offsets. Making accurate eccentric turns depends on you using accurate toolpaths and offsets.

Precision and Accuracy

Precision is very important in Eccentric Turning to create parts that are not straight. Making sure your part is of the right quality depends on strict checks and accurate measuring devices. Regular checks eliminate expensive mistakes.

Vibration and Tool Deflection

Lack of control over vibration can result in surface defects and errors in the parts. You are required to dampen your tools, select a suitable shape for them, and check that the machine is not moving. Moderating the vibration during turning prevents any changes in quality.

Applications of Eccentric Turning

Manufacturing of Rotating Parts

By using eccentric turning, you can make rotating shafts, pulleys, gears, elliptical cam and cams that are not concentric. These parts are reliable in machines only if they have the correct features at off-center. Making parts eccentrically allows them to fulfill the design requirements and operate properly.

Automotive Industry

Eccentric turning is used when making medical implants and related surgical equipment, which are often very complex and require strict standards. By using eccentric turning, you can ensure that the camshaft and crankshaft are offset enough to operate reliably in engines for a long time.

Aerospace Applications

Eccentric turning is important in the aerospace due to the importance of quality and precision. Using eccentric turning, it is possible to create aerospace parts that meet the required accuracy. You can make safety-approved and well-performing aircraft parts using eccentric turning.

Medical Industry

Eccentric turning is essential for medical equipment because it requires very high precision. Thanks to eccentric turning, parts made for the medical field are of high quality and keep the patient safe.

Specialty High-Precision Industries

Eccentric turning is most useful in electronics and robotics because it needs to be very precise. It is helpful for making any mechanical tools or parts that require exact offsets and detailed shapes.

Benefits of Eccentric Turning

Enhanced Precision and Accuracy

With eccentric turning, you can make more accurate concentric offsets than you can with standard turning. Using eccentric turning in your turning application means you can speed up the process of making details that would take a lot of time and effort with different tools. By practicing eccentric turning, you can make your parts perform as intended and fit together properly.

Increased Efficiency

It is much simpler and faster to produce eccentric parts than to use other manufacturing techniques. Eccentric turning helps you complete your work efficiently and with more accuracy when dealing with detailed needs. It takes less time to make things and errors are reduced.

Cost-Effectiveness

When using eccentric turning, you can prevent materials from being cut into small pieces. This leads to a decrease in the overall manufacturing cost. Eccentric turning makes it possible to produce several parts together, at a lower cost than conventional methods.

Versatility

Eccentric turning is possible with various metals, starting with soft and going to hard ones. Eccentric turning makes it possible to make both simple and challenging shapes. Any production work, including complex or certain materials, can be done with eccentric turning.

Common Challenges in Eccentric Turning and How to Overcome Them

Material-Related Challenges

You may encounter tool wear and a rough surface when dealing with hard to machine materials. Speed and feed rate should be adjusted to overcome this challenge. Using cutting lubricants is important to prevent damage to both the cutting tool and the surface when processing hard to machine materials. Issues with difficult materials can be fixed by choosing the right tool and applying a coating.

Tool Wear and Maintenance

Any imperfection in your tool will show up in your work immediately. Regularly look over your tools to make sure there is no chipping, wear, or cracking. If you take care of your tools by sharpening and cleaning them, they will last longer. You should set up a system that prevents tool failures and allows for excellent performance in eccentric turning.

Workpiece Vibration

Often, vibration leads to your workpiece becoming inaccurate and out of control. Maintaining balance and stability in your setup allows you to deal with vibration. If you use slower spindle speed and feed rate, it can minimize vibration. Counterweights and dampers also play a role in improving the accuracy of your workpiece, just like vibrations.

Accuracy and Tolerances

It is difficult to maintain close tolerances when making eccentric turns due to the offset forces. Check the size of the parts you produce by using measuring tools and reviewing them. Have your machines calibrated on a regular basis to avoid mistakes and ensure the same eccentricity.

Programming and Setup Issues

The offsets in your CNC program for eccentric turning cnc should be handled with very high precision. You may see errors in your prints if there are errors in the G-code or toolpaths. Before actually machining, you should run the simulation of your program. Getting the same good results every time is possible if machines are calibrated and set up properly.

Eccentric Turning vs. Other Turning Techniques

Sr. No.	Feature	Eccentric Turning	Concentric Turning	Drilling	Milling
1	Purpose	Creates off-center features, multiple axes of rotation.	Creates features around a single, central axis.	Creates cylindrical holes.	Creates various shapes and features using a rotating cutter.
2	Setup	Workpiece offset from the spindle axis.	Workpiece centered on the spindle axis.	Tool (drill bit) rotated and fed axially.	Workpiece fed against a rotating multi-point cutter.
3	Outcomes	Parts with offset holes, multiple diameters, cams.	Cylindrical parts, tapers, threads, smooth surfaces.	Cylindrical holes with specific diameters and depths.	Complex 2D and 3D shapes, slots, pockets, surfaces.
4	Control/Precision	High control over offset and multiple axes.	High precision for roundness and concentricity.	Good control over hole diameter and depth.	High precision for complex geometries and surface finish.
5	When to Use	Creating cams, crankshafts, parts with offset bores.	Creating shafts, bushings, screws, simple round parts.	Creating holes for fasteners, fluid passages, etc.	Creating flat surfaces, intricate shapes, gears, threads.
6	Versatility	Limited to rotational parts with offset features.	High for axially symmetric parts.	Primarily for creating holes.	Very high for creating diverse geometries.
7	Advantages	Precise offset positioning, 8multiple features in one setup.	Efficient for producing round parts.	Simple and fast for hole creation.	High material removal rates, complex shapes possible.
8	Limitations	More complex setup, not suitable for purely concentric parts.	Not suitable for offset features.	Limited to creating holes.	More complex setup and tooling, can be slower for simple features.

Conclusion

With eccentric turning in lathe, you can make more accurate concentric offsets than you can with standard turning. This approach speeds up the process of making details that would take a lot of time and effort with different tools. By practicing eccentric turning, you can make your parts perform as intended and fit together properly.
