Plastic Machining Insights – The Complete Beginner’s Guide

Plastic machining is a production process using raw plastic to create parts with high precision, and it emerged in the course of a re-purposing of the metalworking tools of the mid-20th century to CNC. It finds use in aerospace as a lightweight insulator, in medicine as biocompatible implants, and in the automotive industry as corrosion-resistant and low-cost components. The concepts, types of plastics, machining, and new trends are discussed in this guide to provide an expert novice with an idea of how to make the right decisions. Jump into plastic machining and discover its opportunities–start to explore it now!

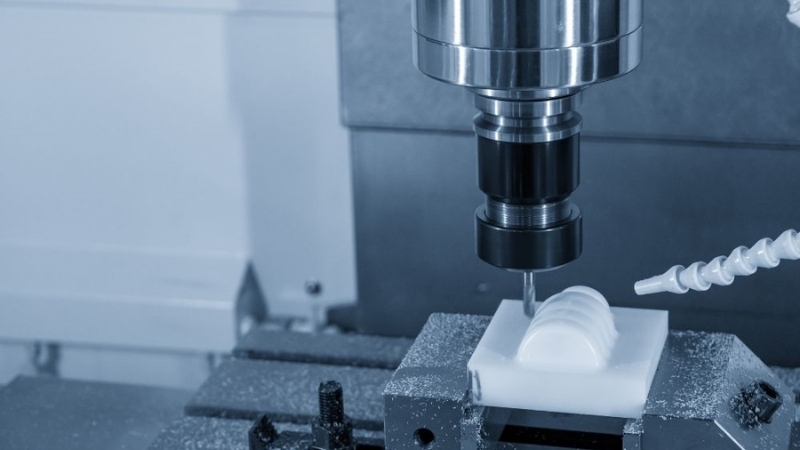

Understanding Plastic Machining

Plastic machining is a subtractive machining technique in which plastic material is machined out of its stock, using mills or lathes. Plastic does not behave like metal, and you need sharper tools and lower feed rates to avoid heat build-up. It has the advantages of being lighter, it does not corrode and is also a good electrical conductor, which provides it with flexibility and use in harsh conditions.

Types of Plastics Suitable for Machining

Thermoplastics

• Acrylonitrile Butadiene Styrene (ABS)
• Polycarbonate (PC)
• Polyethylene (PE)
• Polypropylene (PP)
• Polyvinyl Chloride (PVC)
• Polymethyl Methacrylate (PMMA)
• Polyoxymethylene (POM)
• Polytetrafluoroethylene (PTFE)
• Nylon (Polyamide)
• Polyetheretherketone (PEEK)

Thermosets

• Epoxy resins
• FR4
• Phenolic resins
• Melamine

Elastomers

• Polyurethane
• Silicone

Comparison Table of Plastics Suitable for Machining

Tools and Equipment for Plastic Machining

• Cutting Tools: Plastic is cut using specialized cutting tools, including end mills, drill bits, lathes, routers and saw blades. Other inserts such as chamfer tools, countersinks, knives and scrapers are used to provide accurate finishes during the process.
• CNC Machines: Select rigid frames with high spindle speed CNC machines. The feed rates will be modified to prevent heat distortion of plastics.
• Work holding Solutions: Vacuum table, soft jaws or custom fixtures. Soft plastics are not bent or deformed without adequate support.

Plastic Machining Methods

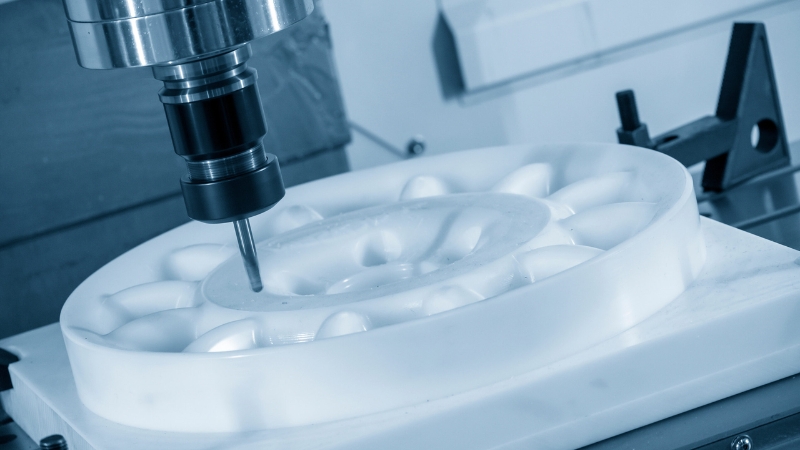

CNC Milling

Use rotary cutters to remove material in a plastic block. This is applicable in CNC mills that have carbide tools or diamond-coated tools. The right plastics are ABS, acrylic, nylon and PEEK. The process results in housings, fixtures, as well as prototypes that are highly precise, reproducible, and with narrow tolerances.

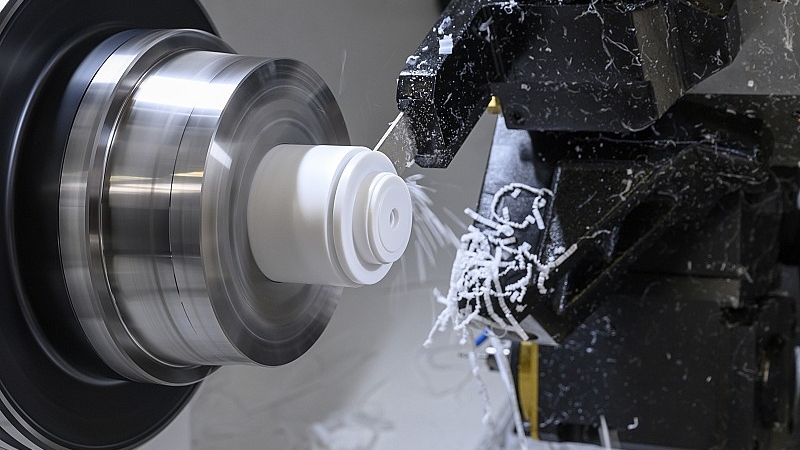

CNC Turning

It is turned on a CNC lathe using sharp inserts or HSS tools by spinning around the plastic and cutting it using lancets. They are compatible with acetal, PVC and PTFE. It makes bushings, seals and other round products with smooth finishes and correct diameters in the process.

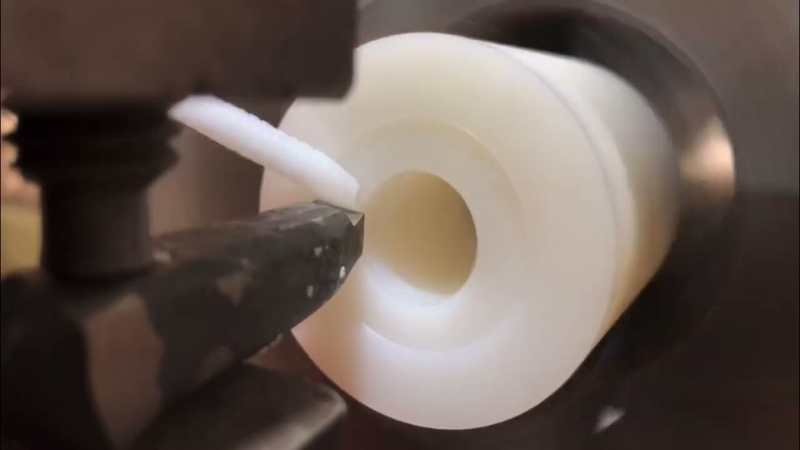

CNC Mill and Turn

Mining and submitting of a single station using multi-axis CNC machines using hybrid tool sets. Good candidates include delrin, HDPE and polypropylene. It creates complex parts such as valve bodies or connectors, reduces handling and maximizes productivity.

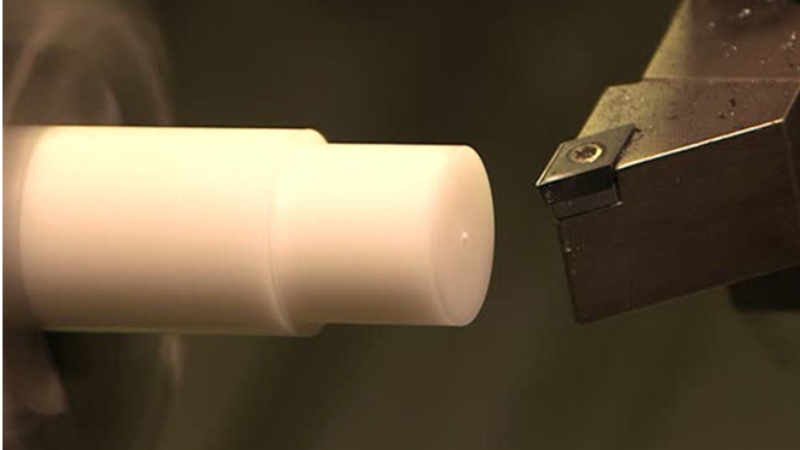

CNC Swiss Machining

Introduce the plastic bar through a guide bushing in Swiss-type CNC lathes with fine inserts. Machine well with PEEK, PPS and Ultem. The technique is ideal with regards to medical elements, electronic connectors, and, micro components which offer steadiness, accuracy, and velocity.

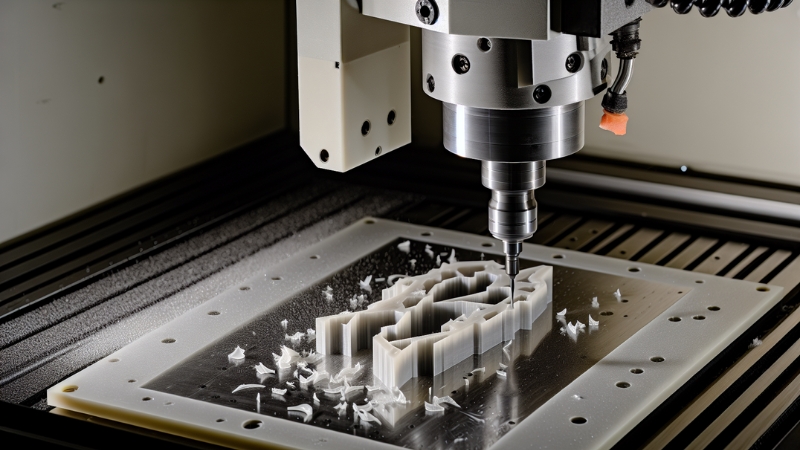

Drilling

Drill holes using drill bits on drill presses or CNC machines. Polycarbonate and acrylic are common materials. The procedure produces structural components, jigs, and fasteners. Drilling is cost effective and multi purpose.

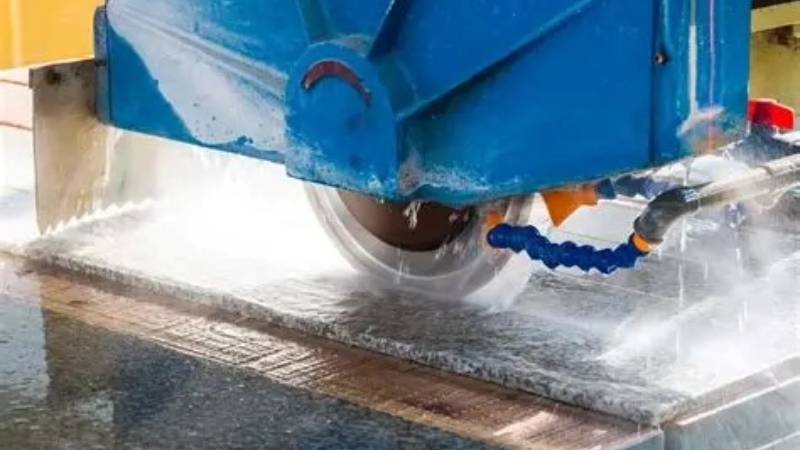

Sawing

Saw blades on table saws or band saws. Polycarbonate, acrylic and PVC cut well. Sawing provides rough lines that can be cut down later and is hence fast and inexpensive.

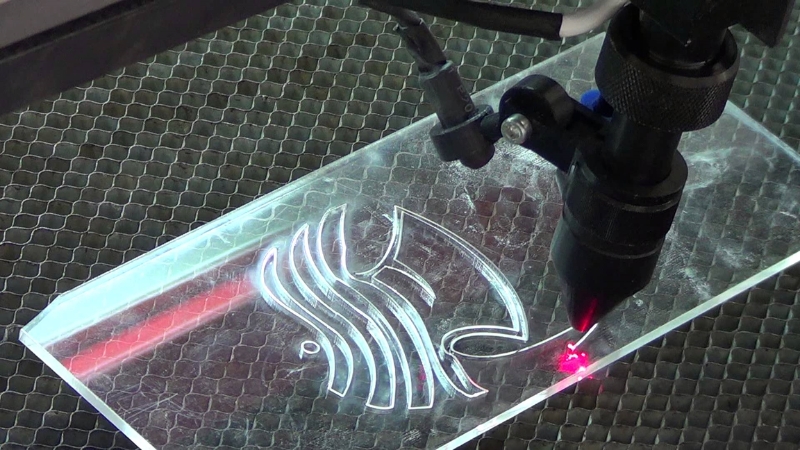

Laser Cutting

Melt or vaporize plastic using CO 2 laser machines of standard size. These are to be acrylic, PET and polycarbonate. The method creates signage, panels and decorative elements in a fine and smooth edge details.

Waterjet Cutting

Cutting high pressure water with abrasives using CNC waterjet machines. Nylon, UHMW and composites are appropriate. The technique is applied to heavy or stratified plastics, and does not leave behind heat damage, and produces intricate shapes.

Grinding

Complete abrasive wheels and accurate grinders or belt sanders. Good are phenolic and fiberglass hard plastics. The process creates smooth finishes and tight tolerances that improve the finish and dimensional correctness.

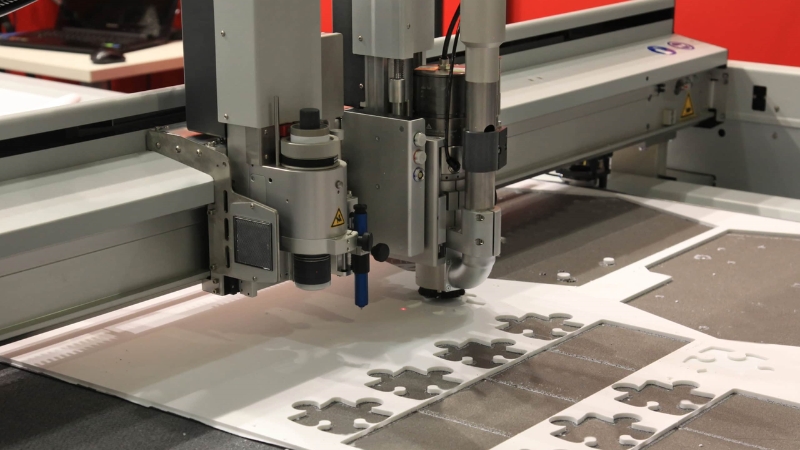

Stamping

Press plastic sheets of presses with hydraulic or mechanical presses. ABS and polycarbonate are common thermoplastics. In mass production and low cost Stamping produces clips, washers and thin parts cheaply.

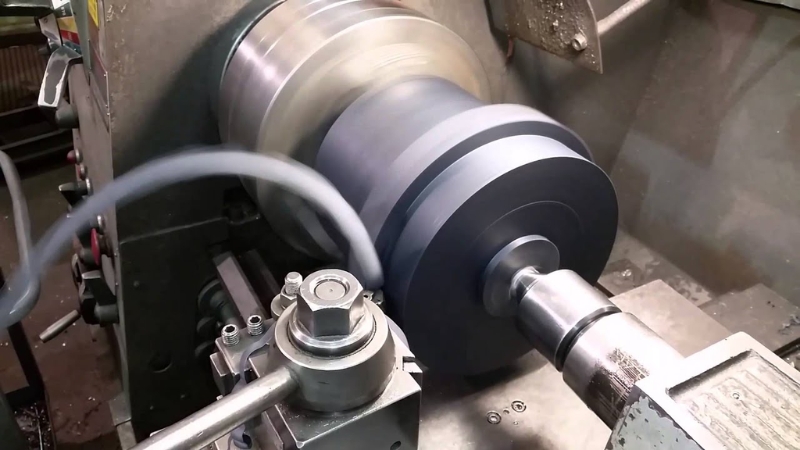

Automatic Lathe Machining

Automatic tool changer lathes automatically machine parts using plastic rods. Nylon, Delrin and acrylic are good candidates. The technology leads to gears, spacers, and pins, which foster mass production and consistency.

Comparison of Plastic Machining Methods

Design Considerations for Plastic Machining

Adjust the set tolerances  to suit the plastic. Narrow tolerances are costly and wasteful. Modify tolerances to the thermal stability of the material and the actual functional needs of the part.

Wall Thickness and Structural Integrity

Maintain the wall thickness throughout the design. Too thin walls are bent, and give way, and unsafe. Target at least 1.5- 2mm on plastics.

Prevention of Stress Concentrations

Stress is concentrated on plastic parts by sharp edges. Replace it with fillets or radii to distribute loads. There is no sensuous progression that decreases the risk of cracking and enhances the durability.

Threading and Fastening

Plastic fibres can be easily worn. Add threaded inserts or metal bushings to secure the connections. Snap-fitting or adhesives can also work.

Prototyping vs. Production

Tighter tolerances can be applied to prototype designs to speed up iteration. The production parts have to meet precision and high-quality standards. Test prototype performance at small scale.

Advantages of Plastic Machining

Cost-Effectiveness

When the volume is low, plastic machining is a cheap alternative. You need not buy expensive tooling such as in injection molding and can fabricate parts without spending money on molds. This will enable machining to be the most appropriate option when there is prototype or a small run that will save money but provide accuracy.

Flexibility in Design

Plastic machining enables the production of complex geometries including undercuts, threads, and small features without the inconvenience of tooling. This freedom will ease the design of products and will allow you to experiment with the unusual forms and then scale them.

Material Versatility

There are numerous materials in plastic machining. You have Nylon, PTFE, acetal, PEEK, etc. Each material has some properties such as heat resistance, wear resistance/chemical stability and through this you can select the most appropriate plastic to be used in your project.

Rapid Turnaround

Plastic machining produces fast outcomes. Prototyping is perfect since components can be produced within days and not in weeks. Batches are made and therefore, the lead times are very short hence you can get concepts to testing much faster.

Customization

Plastic machining offers customization. Dimensions, features, and finishes can easily be varied, and can be used in niche applications where accuracy is a concern. This flexibility makes you the driver of the performance of the product, and therefore allows you to act in response to the special needs of the industry or the consumer in an effective way.

Challenges in Plastic Machining

Heat Management

Heat management during plastic cutting. A surplus heat fuses, bends or over heats the part. Feed with a sharp object and feed quickly. Decrease the velocity of the spindle to reduce friction. Air-cool or mist-cool.

Tool Wear

Many plastics are filled with glass or mineral and they grit your tools. The tool’s edge dulls fast. Better tools are carbide or diamond coated. Check the equipment regularly and replace them to ensure precision.

Chip Control

The tool may become entangled in the long stringy chips that plastics leave and stop cutting. Blow them out with chip breaker and compressed air. Keep the correct feed rate to reduce stringiness. To prevent the sticking of the chips, a small lubrication will cause the chips to flow off.

Surface Imperfections

The plastic parts may get burred, fractured or thickened. These issues are compounded by a blunt tool. Keep the tool sharp and clean. Adjust the cutting speed to give a smooth surface. Deburr post machining where required.

Material-Specific Issues

The plastics behave in different ways. Delaminate Composites can delaminate when stressed. Acrylic is a cracking plastic and it breaks easily. Set the cutting parameters of each material and never go to full production without testing.

Applications of Plastic Machining

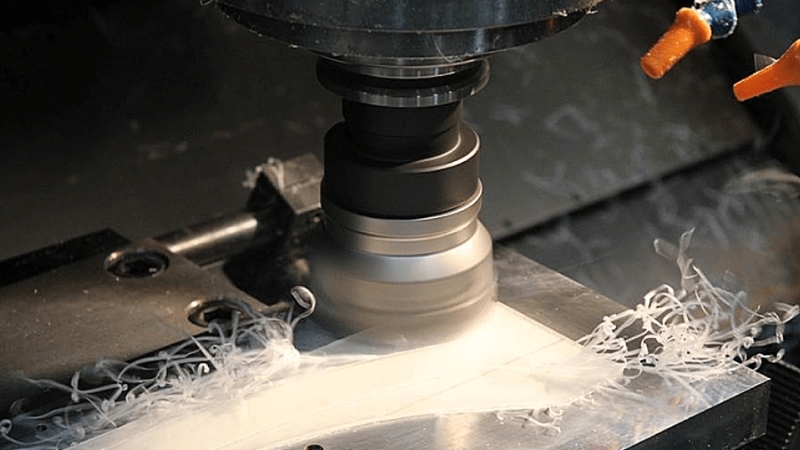

Aerospace

Plastic machining of aerospace components such as insulators, bushings and brackets is done to be lightweight. These parts reduce the weight of aircrafts and they are strong. Plastics may also be resistant to corrosion and the life of the components in the harsh environments is extended.

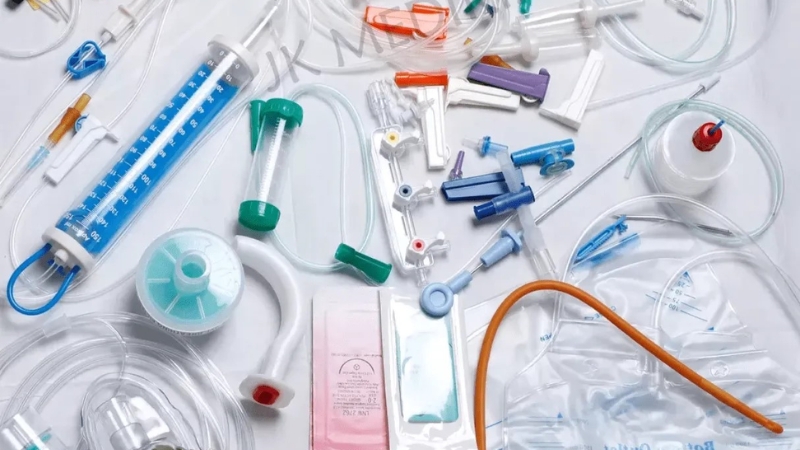

Medical Devices

Medical products are machined with precision through plastic machining. PEEK and Ultem are strong materials that are biocompatible. These are machined parts that are precise and safe to surgeons. Plastic based implants are made to be high performance and compatible with the patient and are easy to sterilize.

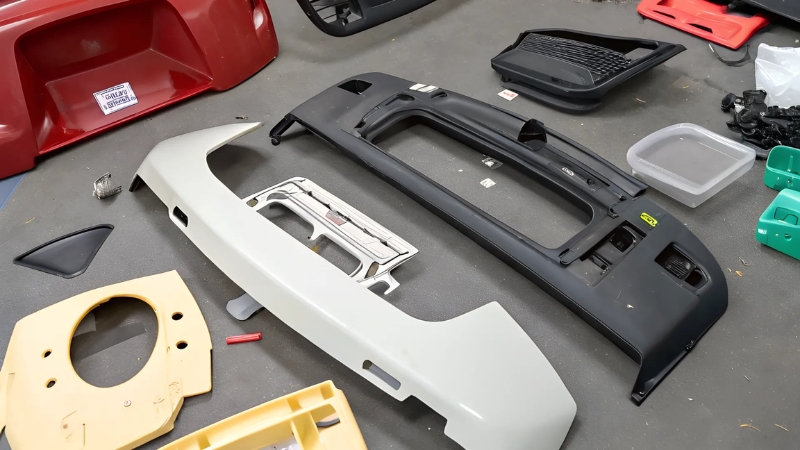

Automotive

Plastic machining is done in automobile interior and under-hood parts. They make the vehicles lighter and consume less fuel. They are vibration-resistant, heat and fluid resistant. The lasered products include dashboards, clips and housings. The plastics used under hood are very resistant to wear.

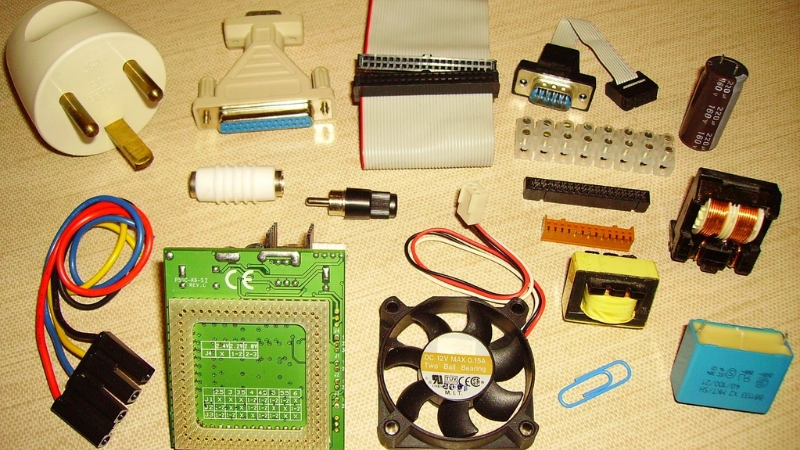

Electronics

Plastics are also sliced to insulating covers. They eliminate short circuits and power outages. The enclosures protect sensitive electronics. The design is lightweight to enable easy carrying around of the devices and precision machining makes them fit perfectly and be stable.

Industrial Equipment

Plastics are used to manufacture gears, rollers, and wear parts. Machined plastic parts do not produce noise like metals and are more abrasive and need little lubricant. They are durable in harsh uses and reduce maintenance expenses.

Comparison with Other Plastic Fabrication Methods

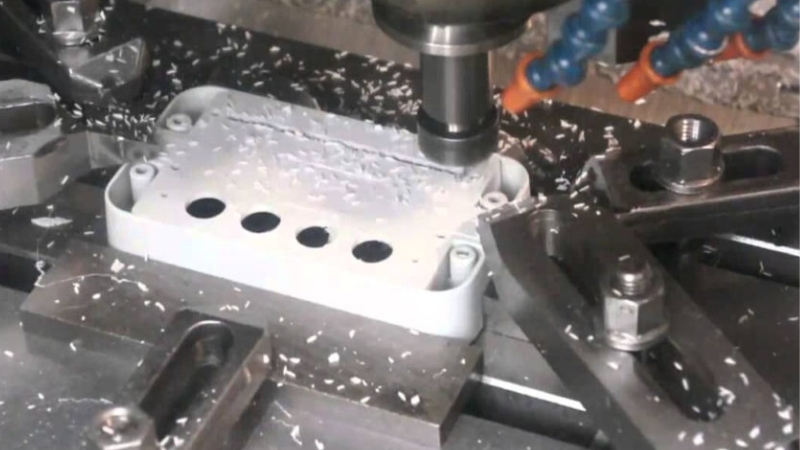

Plastic machining versus injection molding

In cases where tooling is expensive, machining should be employed when the quantity is low. Injection molding is less expensive per unit and is better suited to high volumes. Machining is more prolific because it does not involve creating the moulds. The injection molding is not as fast to establish, but it is more efficient in high-speed mass production.

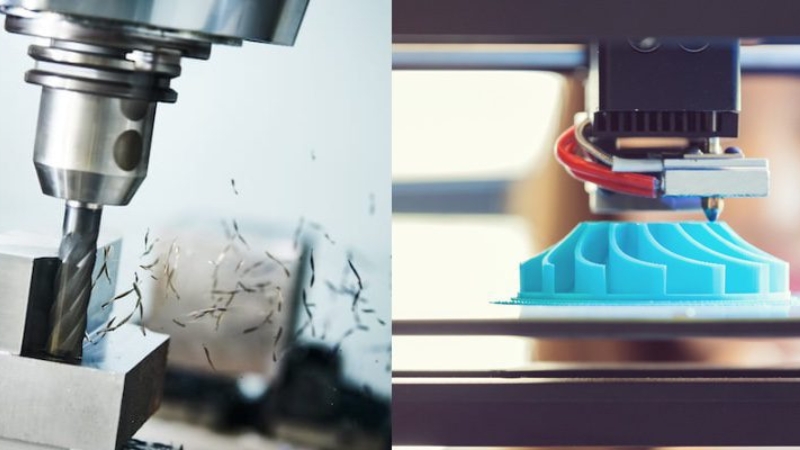

Plastic Machining versus 3D Printing

Compared to most 3D printers, machining is more accurate and can work with more industrial grade plastics. 3D printing is restricted to a range of polymers and can have stratified surfaces. Machining offers finer finishing and tighter tolerance, hence should be applied on material which needs high quality. Reserve 3D printing to be applied in complicated machining geometries.

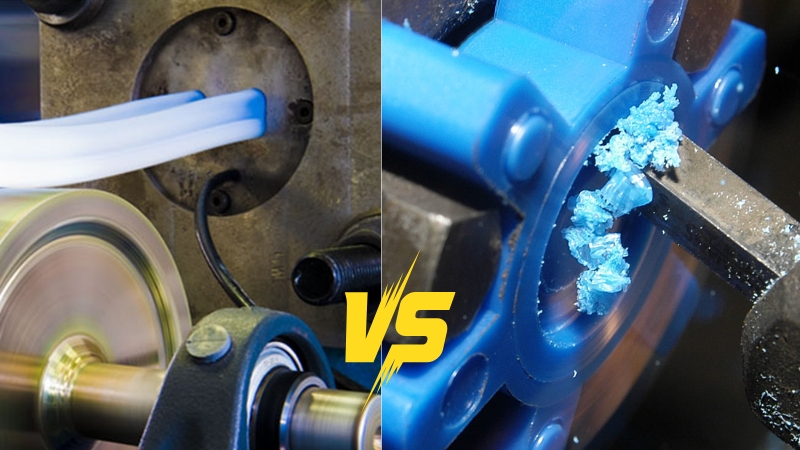

Plastic Machining vs. Extrusion

Extrusion is able to make continuous profiles, such as pipes, sheets and rods, but not finer details on its own. These extruded pieces are cut, drilled and machined. Extrusion and machining fusion is common to utility goods.

When Plastic Machining is the Choice.

Use machining on close tolerances, complex shapes, or prototype. It is most appropriate in small batch production where extrusion or molding would be costly. Machining also offers flexibility to make changes without the need to create new tooling and the surface quality is also superior to most of the additive processes.

Best Practices for Optimizing Plastic Machining

• Material Selection: Choose the plastics that will fit your needs. High heat resistance Use PTFE or PEEK, appearance and cost are important Use ABS or acrylic. Finalizing of materials must never be done without checking on chemical resistance.
• Toolpath Optimization: Toolpaths with less heat and stress. Climb milling should be used when possible and tool engagement should be routine to avoid sudden load variations. Short tool paths save on time and enhance surface finish.
• Speed and Feed Rates: Feed and balance speed to achieve quality results. Higher plastics spindle velocity than metals, but lower feed rates to minimize chatter and deformation. Adjust set tune parameters to avoid meltdowns and burrs.
• Quality Control: Check each lot of plastic parts. Check surface profiling with profilometers, surfacing of checks with calipers, micrometers or CMM. Early identification eliminates expensive rework.
• Operator Training: Plastic machining trainers. Plastics are not responsive to cutting stresses like metals and hence a seasoned operator can detect the signs of melting easily such as burrs and tool wear. Experience increases consistency and minimizes waste.

Future Trends in Plastic Machining

Advances in CNC Technology

CNC machines have become more automated and much more precise with adaptive control systems that optimize tool paths on the fly. Such systems minimize mistakes and provide uniform tolerances. Robotics also help in automated handling of parts.

New Plastic Materials

PEEK, PPS, and PEI are high-performance polymers, which introduce more strength and heat resistance. These plastics increase design possibilities of aerospace, automobile, and medical parts. The machining parameters keep on changing to suit their properties.

Hybrid Manufacturing

Additive manufacturing is used in conjunction with traditional machining in order to produce near-net-shape components with reduced waste. Fine details and tight tolerances are then machined. Hybrid approaches reduce the cycle time and enhance material efficiency.

Industry 4.0 Integration

IoT and data-driven technologies can be used in plastic machining. Smart sensors are able to measure vibration, temperature and wear in real time. This information can guide your prediction of problems and optimization productivity. Machining parameters can also be refined dynamically with the use of machine learning.

Sustainability Innovations

You can use environmental machining of plastics. Machining without coolants and recyclable polymers are environmental friendly. Sustainable practices also reduce expenses and enhance adherence to green manufacturing practices.

Conclusion

Plastic machining is an important aspect of contemporary production and product design. It is advantageous to you due to its flexibility, accuracy, and cross-industrial applicability. You are able to get light, strong, and affordable parts. To engineers, it provides design freedom and solutions of high performance. Manufacturers become efficient and scalable. Discover plastic machining and open up to novel opportunities. Use best practices to guarantee quality and minimized waste. Keep abreast of developing materials, methods, and standards. In this way, you guarantee a successful competitive markets in the long term.
